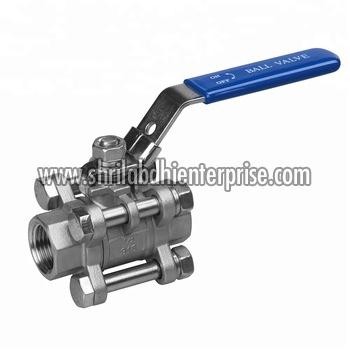

Screwed End 3 Piece Ball Valve


Screwed End 3 Piece Ball Valve

Specifications

Size 1/2”, 3/4”, 1”, 1 ½ “, 2”, 2 ½ “,3”
Material Stainless Steel 304/316
Certification ANSI Certified
Application Fittings
Features Corrosion Proof, Durable

Features :

  • investment Cast Components
  • BLow out proof stem
  • Threading NPT (ANSI B 2, 1) DIN, BS, JIS
  • PTFE seat standard
  • R-PTFE ( Optional)
  • Latch lock handle (optional)
  • Inline repairable

Yes! I am interested


Details

Parts Material
Body ASTM-A351-CF8M
Cap ASTM-A351-CF8M
Ball ASTM-A356-CF8M
Stem AISI 316
Stem Follower AISI 304
Handle AISI 304
Guide Ring AISI 316
Ball Seat PTFE
Body Seal PTFE
Thrust Washer PTFE
Stem Packing PTFE
Lock Nut AISI 304
Nut AISI 304
Stud AISI 304
Spring Washer AISI 304
Handle Sleeve PVC

Technical Details

Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
ød 12.5 12.5 15 20 25 32 38 50.8 65 80 100
L 62 62 66 83 99 111 130 149 183 209 270
H 48 48 52 59 78 85 99 106 135 150 175
W 116 116 115 122 154 154 183 183 247 250 280
CV 7 7 10 25 35 46 80 110 310 360 820
TQ 7 36 43 65 101 158 1.87 230 430 1380 2400
KG 0.41 0.4 0.65 0.8 1.2 2.05 2.8 4.35 8.4 14.5 26.5

TQ = Torque, unit in-lb
KG = Weight, unit-kg
Unit = mm


.

.
